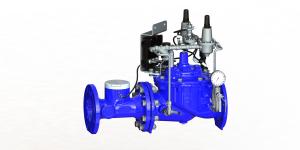

Flow Rate Epoxy Water Pressure Regulator Valve With Remote Controller

Brand Name : AFC

Model Number : P26U

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : USD RMB

Payment Terms : L/C, T/T

Supply Ability : Based on order

Delivery Time : 20-60 days

Packaging Details : plywood cases

Material : Ductile iron - GJS500-7

Pilot : SS304

UI : Remote Controller By Bluetooth

Coating : EPOXY

Type : Pressure Management Type 2

Power : Battery

Contact Now

Type Two Pressure Management valve Switch Pressure Based On Flow Rate Ductile Iron EPOXY Coated

Description:

P26U can switch two sets of pressure based on instant the flow rate. It helps to manage the pressure in when flow rate demand varies.

Feature:

•10 years life lithium battery
• A black control box and solenoid valve connected to the control tube system.
• P26U - Switch 2 different pressure based on flow rate.
• Single remote controller can be fitted for multiple valves setting use by bluetooth connection , no matter numbers of valves
• Remote Controller
• Controller box can be set either by flow rate thru remote controller

Service Fields:

For water system, irrigation system.

Technical Data:

Size Range: DN50~DN800mm
Pressure Ratings: 1.0Mpa; 1.6Mpa; 2.5Mpa
Working Temperature:-10°C- 80°C Suitable
Media: Water
End connection: PN 10 / PN 16 / PN 25
Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS
EN 12266-1, BS EN 558-1

Series Description:

Pressure Management Valve Type Series description
Type 1 - P26M	Type 2- P26U	Type 3 - P26D
Change Valve Pressure Based on Time	Change Valve Pressure Based on Flow Rate	Change Valve Pressure Based on Flow Rate Dynamically.

Materials And Dimensions DN50-DN350

Flow Rate Epoxy Water Pressure Regulator Valve With Remote Controller

Materials And Dimensions DN400-DN800

Flow Rate Epoxy Water Pressure Regulator Valve With Remote Controller
